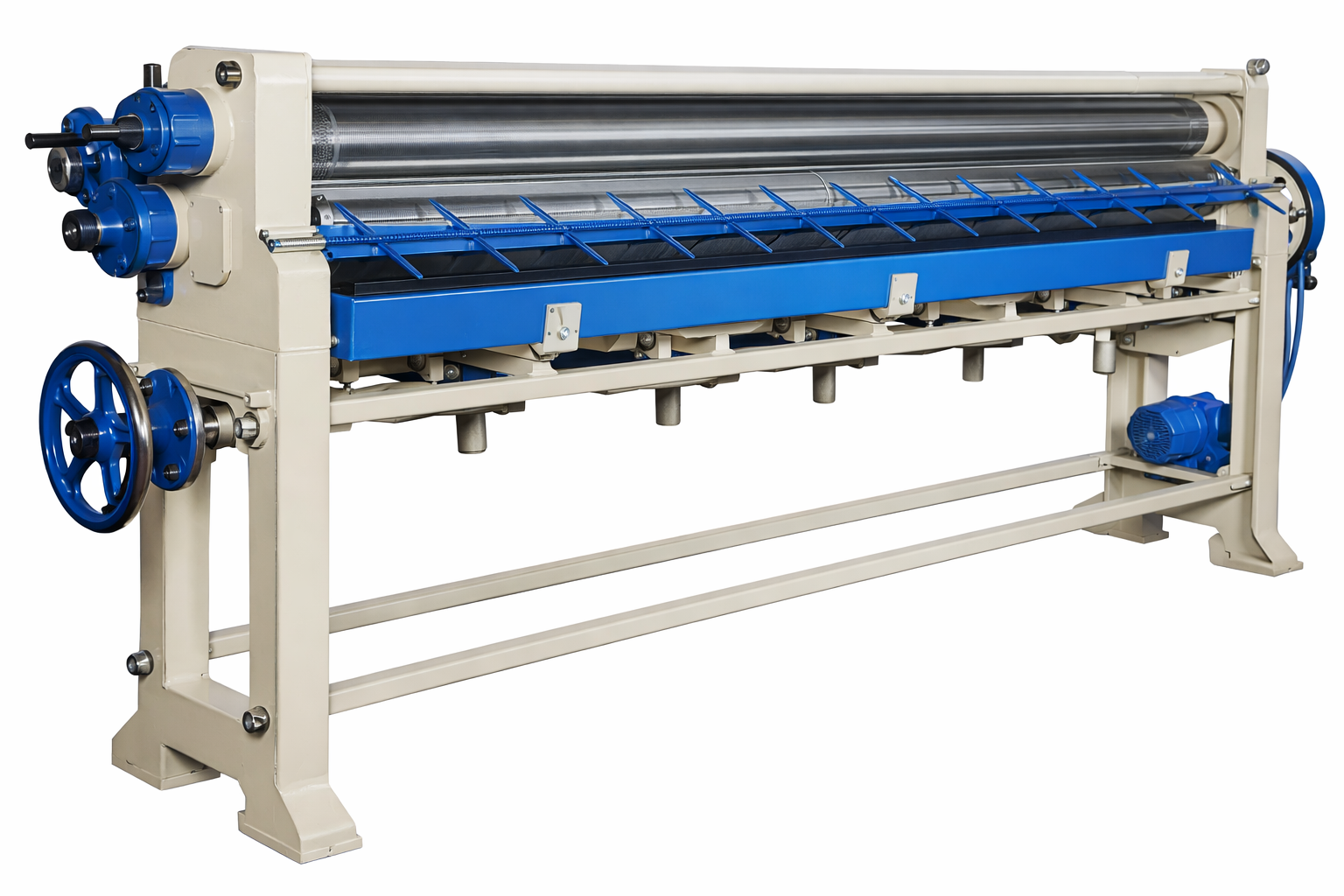

Sheet Pasting Machine
Designed and manufactured by HIC Machinery Co., the Corrugated Sheet Pasting Machine is built strictly to client specifications for reliable, long-service gluing operations. Each unit is quality-tested by in-house auditors to ensure flawless performance and operational efficiency across multi-ply corrugated board production.
The machine is suitable for gluing the fluted side of liner or board to produce 3, 5, 7, 9, and 11-ply corrugated sheets. It comes fitted with a feeding table, delivery stick, paste tray, and holding tray — providing a complete, ready-to-use pasting solution.
Complete Multi-Ply Gluing in One Machine
The Sheet Pasting Machine simplifies the liner gluing process for multi-ply board production, delivering consistent glue application across the full fluted surface. Its straightforward setup and client-specific manufacturing make it a practical solution for small to large-scale corrugated packaging operations.
Size | 75” | 85” | 95” | 105” | 120” |
Output P.M. | 60 Mtr. | 60 Mtr. | 60 Mtr. | 60 Mtr. | 60 Mtr. |
H.P. Reqd. | 0.5 H.P. | 0.5 H.P. | 0.75 H.P. | 1.0 H.P. | 1.0 H.P. |
