Pre-Heater

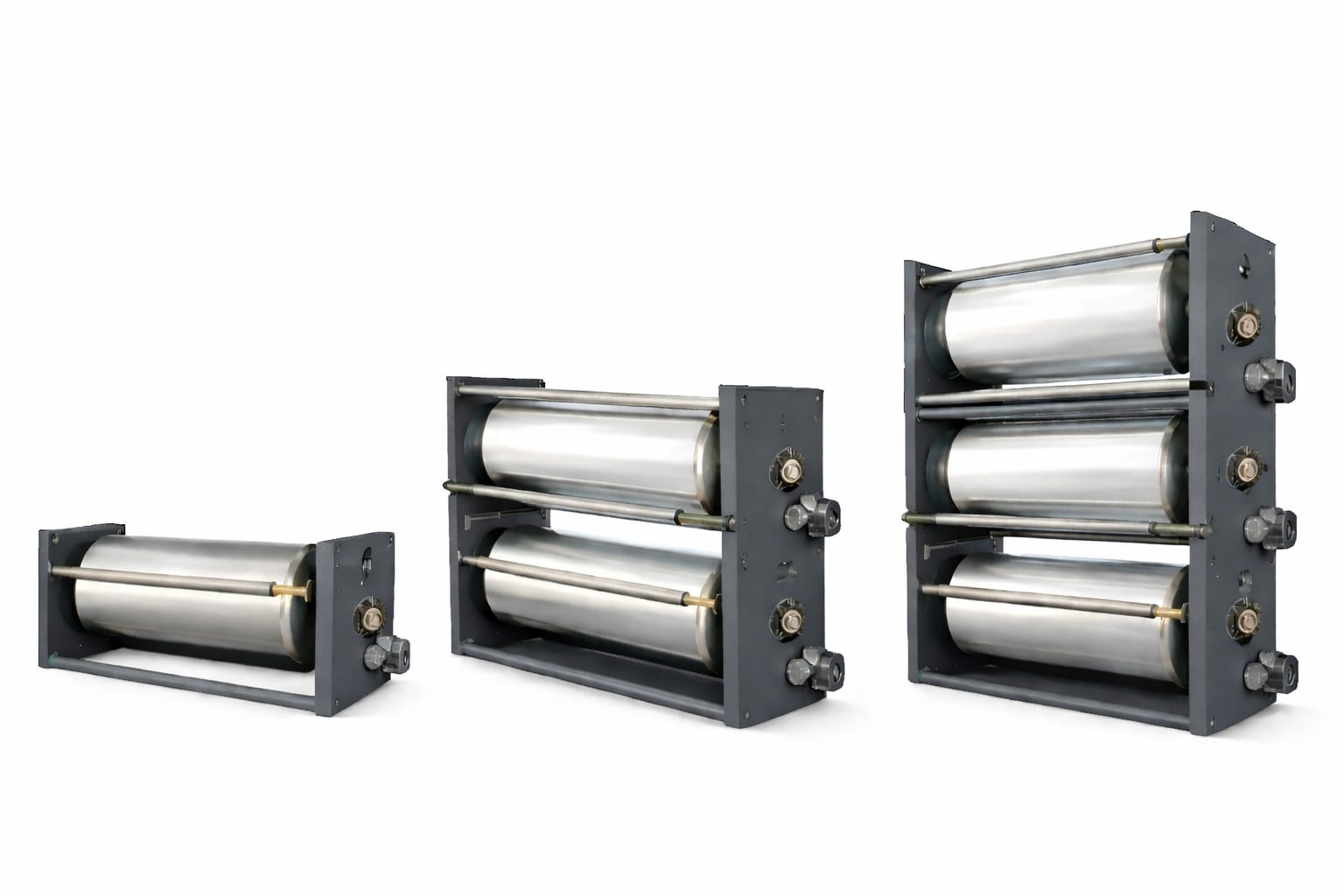

HIC Machinery Co.’s Pre-Heaters condition paper before corrugation, controlling moisture and ensuring uniform heat distribution for consistent board bonding. Available in wrap-around (motorized) and fixed configurations, in simplex, duplex, and triplex drum arrangements to match line speed and ply requirements.

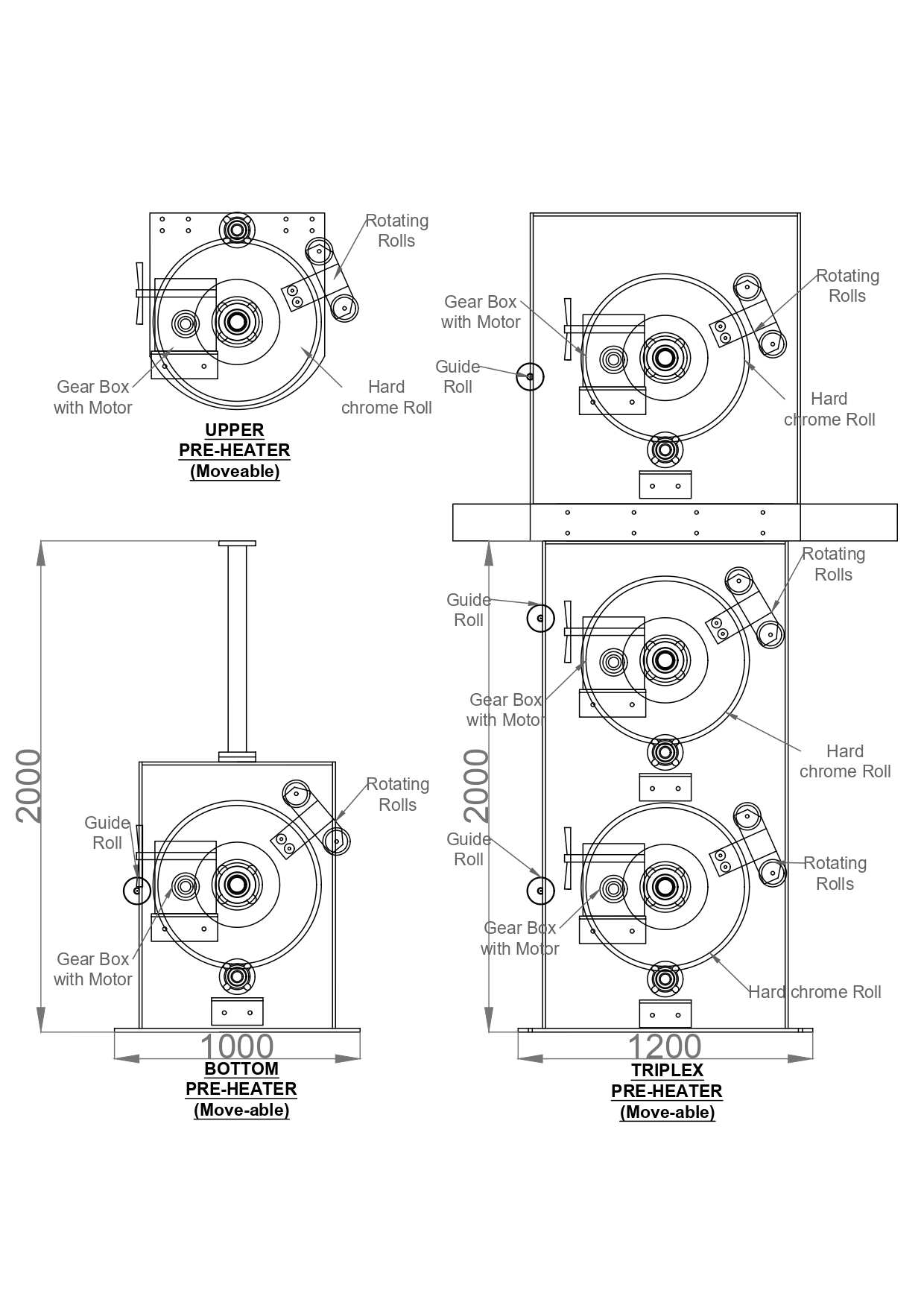

Pre-Heater (Wrap-Around / Motorized)
Features motorized wrap angle adjustment (60°–220°) for precise heat control. Available in simplex, duplex, and triplex drum configurations.
Simplex
- Dia.: 900 / 750 / 600 mm | Width: 1100–2200 mm
- Gear motor with worm gear wrap-angle control
- Steam heating: 1.1–1.2 MPa
Duplex
- Dia.: 900 / 750 / 600 mm | Width: 1100–2200 mm
- Two vertical drum sets — one for 2-ply liner, one for bottom paper
- Metal siphon pipe for condensate drainage
- Hard chrome plated drums and grinding rolls
Triplex
- Dia.: 900 / 750 / 600 mm | Width: 1100–2200 mm
- Three vertical drum sets — two for 2-ply liner, one for bottom paper
- Metal siphon pipe for condensate drainage
- Hard chrome plated drums and grinding rolls

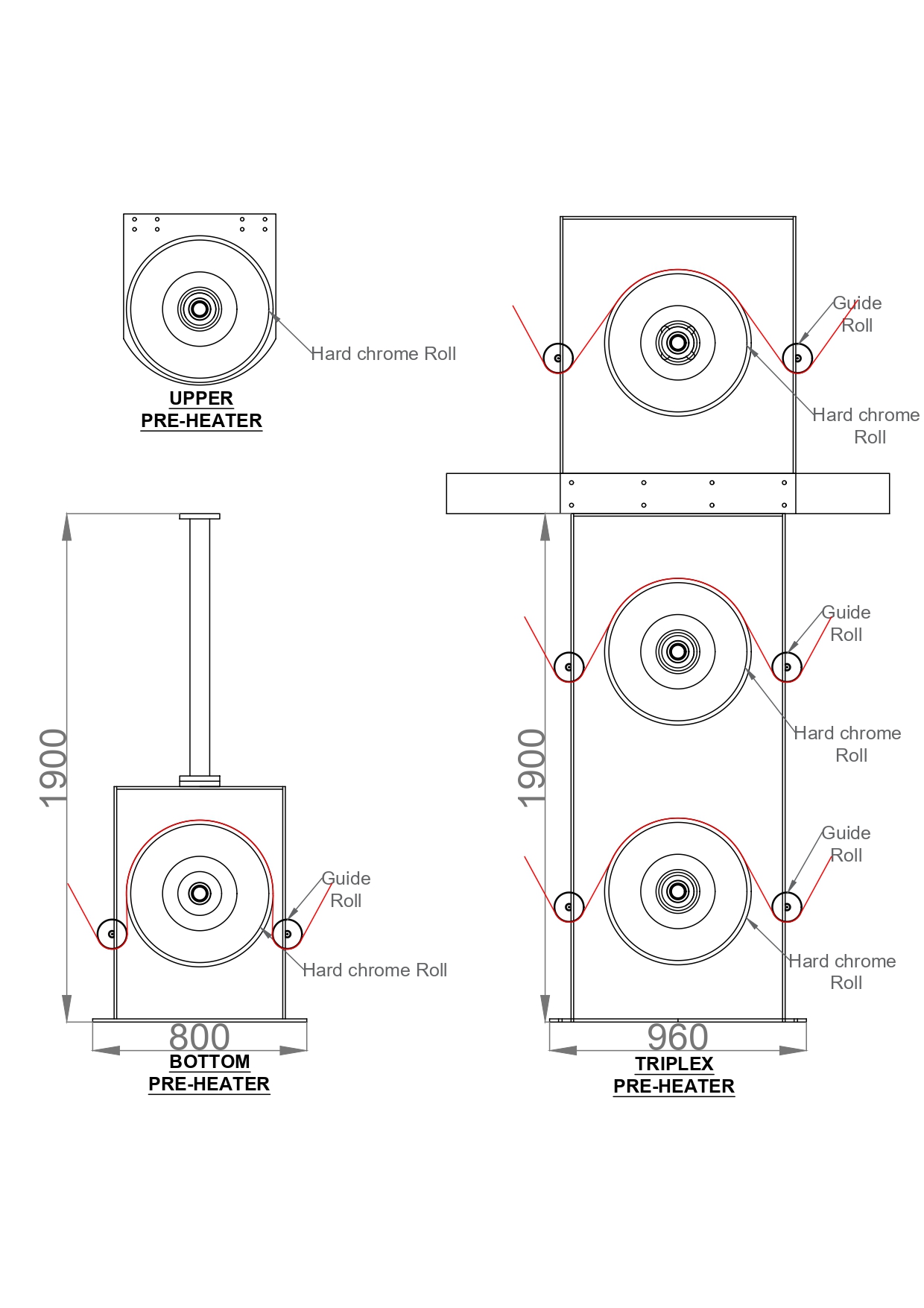

Pre-Heater (Fixed)
A fixed-wrap pre-heater for lower-speed lines, with guide rolls on both sides for smooth paper running. Available in simplex, duplex, and triplex configurations.
Simplex / Duplex / Triplex
- Dia.: 600 / 500 / 400 mm | Width: 1100–1600 mm
- Mild steel LHS/RHS frame construction
- Guide rolls on both sides
- Steam heating: 1.1–1.2 MPa
- Hard chrome plated drums (duplex & triplex)
Freequently Asked Question
The wrap-around version has motorized wrap angle adjustment (60°–220°) for precise heat control at varying speeds. The fixed version has a set wrap angle, suited for lower-speed lines.
A triplex pre-heater is recommended for 5-ply lines to handle all three paper layers.
All models are designed for steam heating at 1.1–1.2 MPa operating pressure.
